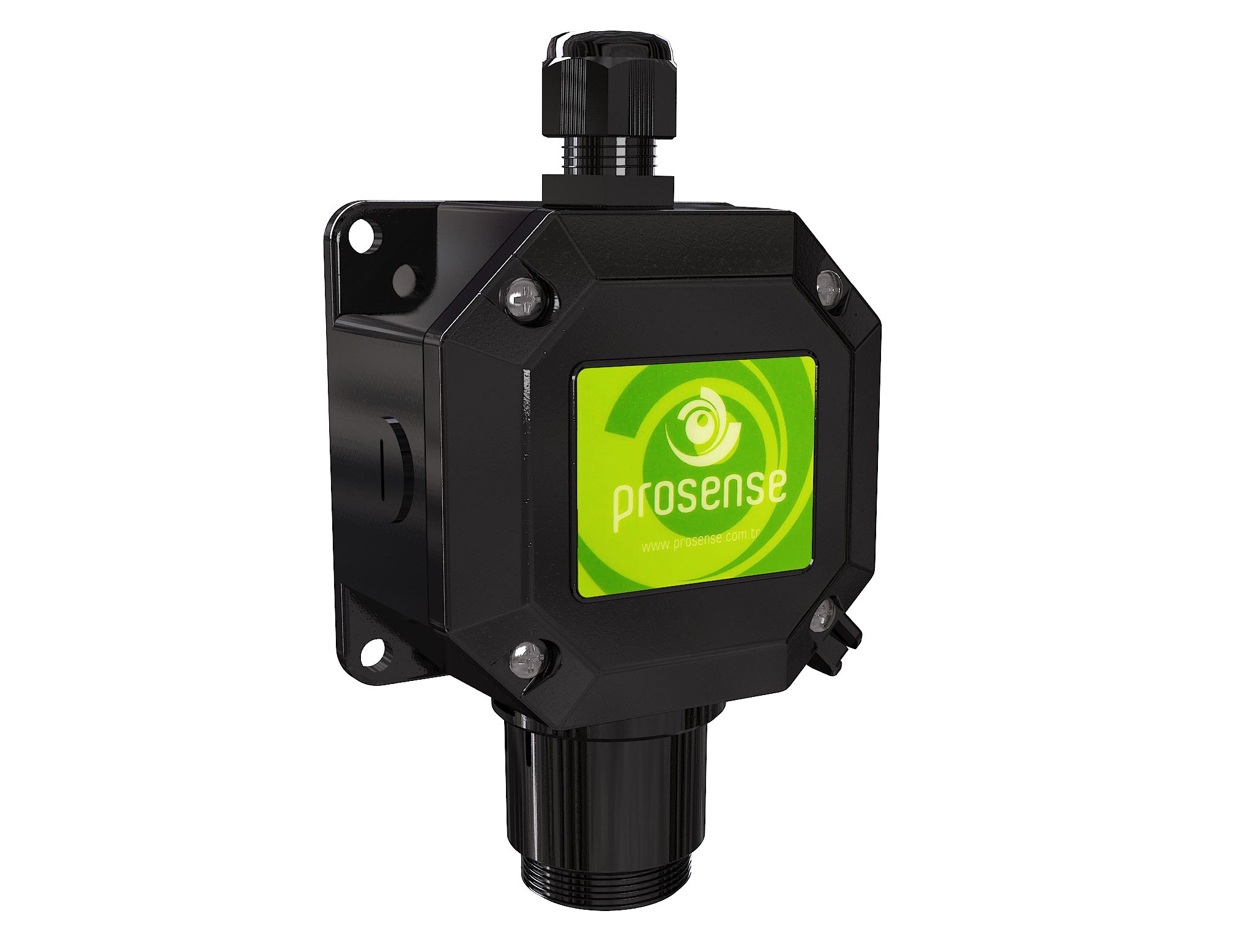

Prosense BTN series gas detectors can reliably detect combustible, toxic, and oxygen gases in light and non-classified areas as a cost-effective solution.

Ask the Expert

• Sensor: Uses catalytic, electrochemical sensor specially designed to detect combustible, toxic and oxygen gases.
• Connection: 2 Alarm, 1 Fault relays output can be set predefined levels and can manage the other devices in case of any event.
• Entry: 3x PG11 cable entries
• Body: ABS Plastic body and IP54 protection class is suitable to low environmental conditions with.
• Output Options: Offers Modbus RS485 for specific applications
• Modbus: It allows to be integrated to SCADA systems easily via open source Modbus RS485(RTU) codes

Sensor Technology Catalytic, Electrochemical, Semiconductor
Output Signal 2 Alarms and 1 Fault Relay
Sensor Warm-Up 60sec
Response Time(T90) Sensor Dependent
Accuracy %2
Operating Temperature -20°C ~ +50°C
Humidity 5 ~ 95%RH
Input Min 10VDC - Max 28VDC - Nominal 24VDC
Power Consumption Max. 3W
Cable Entry 3 x PG11
IP Rating IP54
Junction Box ABS Plastic
Sensor Head ABS Plastic
Dimensions/Weight 150x94,5x58mm / 250gr
  1. BTN Series Datasheet

    BTN Series Datasheet

  2. BTN Series User Manual

    BTN Series User Manual

  3. CE Conformity

    CE Conformity

  4. UKCA Conformity

    UKCA Conformity

BTN-RS Provides Modbus RS485 Output BTN-RS
