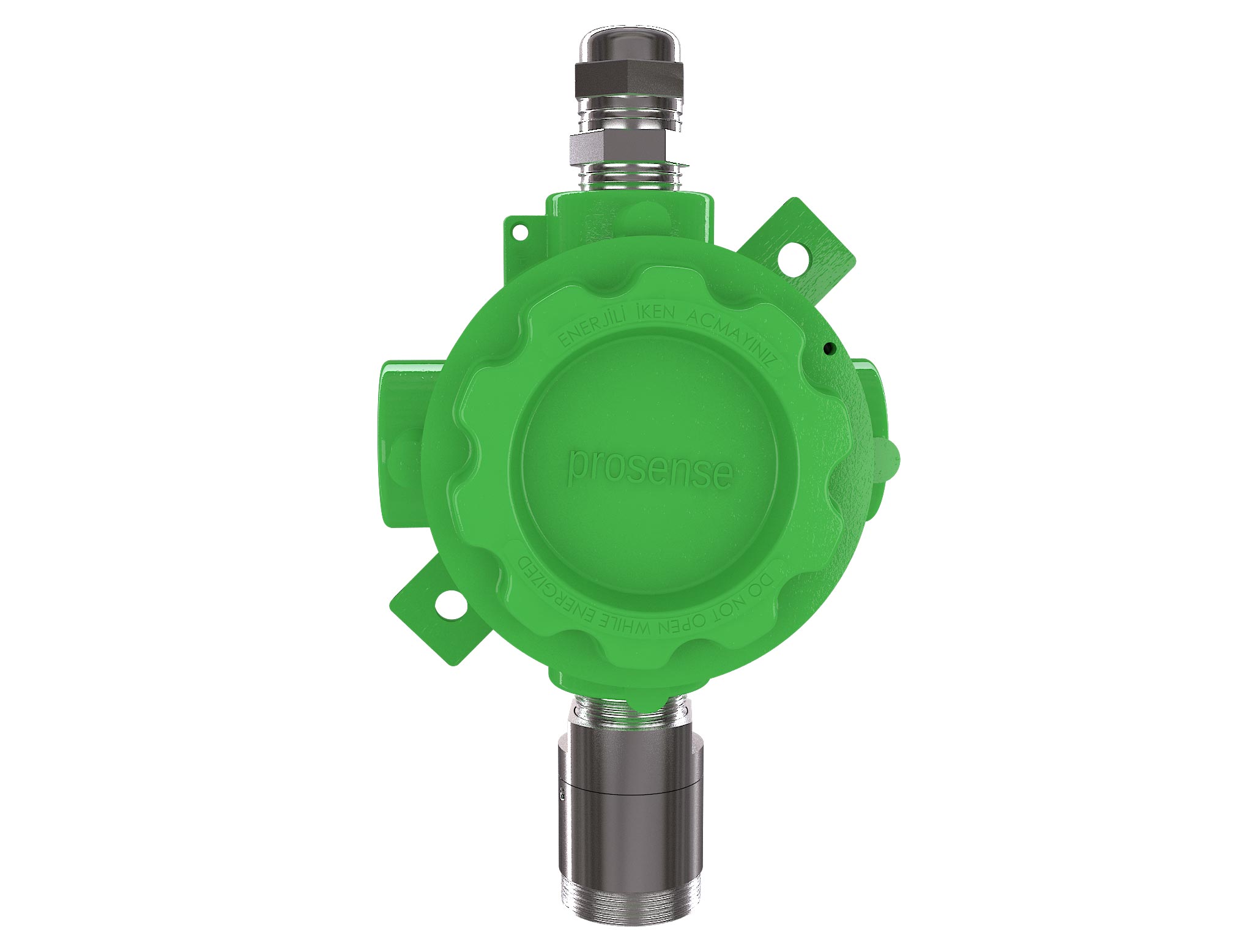

PE-KAYO Series specially designed for the Oil&Gas stations as it has multiple functions. The detector has a special accelerometer chip inside to monitor physical bumps happening on the location where the device installed along with gas measurement functions. It can generate an alarm to cut the gas and oil flow if a car or truck hits the detector or the mounted shaft. Moreover, the Catalytic sensor employed PE KAYO-3212 for Petrol Vapor shows excellent output in 0-100%LEL range.

• Sensor: Uses a high-quality catalytic sensor specially designed to detect Petrol Vapor in 0-100%LEL and motion sensor to detect an impact.
• Certification: ATEX and IECEx certified PE KAYO-3212 is ready to use in an explosive atmosphere safely.
• Connection: Provides 4-20mA, Modbus RS485, and Voltage outputs
• Entry: 1 x 1/2″ NPT cable entry
• Body: Aluminium die-cast body and sensor head superb performance under harsh environmental conditions with IP65 protection class.
• Remote Control: Detector status can be also monitored via Prosense Gas Monitoring software remotely.
• Relay Contacts: With the P-3R+ relay module PE Kayo detectors can manage other equipment a siren, a beacon or can be linked into firefighting panels.

Standards
IEC EN 60079-0
IEC EN 60079-1
IEC EN 60079-18
Certificates
IMQ 19 ATEX 045 X
IECEx IMQ 18.0009X
Sensor Technology Catalytic and Motion Sensor
Output Signal 4-20mA Analog, Modbus RS485 RTU and Voltage
Sensor Warm-Up 60sec
Response Time(T90) <15sec
Accuracy %±2
Operating Temperature -40°C ~ +70°C
Humidity 5 ~ 95%RH Non-Condensing
Input Min 10VDC - Max 28VDC - Nominal 24VDC
Power Consumption Max. 4W
Relay Outputs 2 Relay Contacts (Alarm1-Fault or Alarm1-Alarm2) (All relays are NO/NC adjustable)
IP Rating IP65
Junction Box Epoxy Painted Die-Cast Aluminum
Sensor Head Nickel‐Plated Brass
Dimensions/Weight 172,5x118,15x88mm / 1150gr
ATEX Marking II 2G Ex db IIC T4-T5 Gb
Hazardous Class Zone 1 or Zone 2
  1. PE Series Datasheet

    PE Series Datasheet

  2. PE Series User Manual

    PE Series User Manual

PE-2R+ 2 Relay Contacts
(Adjustable Alarm1, Alarm2 or Alarm1, Fault)
PE-2R+
PK-KEP Prosense Calibration Cap PK-KEP
